– Marca: Asus

– Modelo: 90MB1340-C1BAY0



– Processadores Intel Socket 1200 para 10a Gen Intel Core, Pentium Gold e Celeron Processadores

– Suporta processadores Intel de 14 nm

* Visite para a lista de processadores suportados.

Suporta Intel® Turbo Boost Technology 2.0 e Intel® Turbo Boost Max Technology 3.0**

** O suporte ao Intel® Turbo Boost Max Technology 3.0 depende dos tipos de CPU.


– Processadores Intel Z490


– Memória 4 x DIMM, máximo de 128GB , DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered

– Arquitetura de memória: Dual Channel

– Suporta Intel Extreme Memory Profile (XMP)

– OptiMem II

* 10th Gen Intel Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to for the Memory QVL (Qualified Vendors Lists).

* Consulte ou o manual do usuário para a lista de vendedores qualificados de memória.


Processador Gráfico Integrado

– 1 x DisplayPort 1.4**

– 1 x HDMI 1.4b

* As especificações gráficas podem variar entre os tipos de CPU.

** Suporte DisplayPort 1.4 com max. resolução de 4096 x 2304 a 60Hz. Consulte para qualquer atualização.

Suporte Multi-GPU:

– Suporta Tecnologia AMD 2-Way CrossFireX

Slots de expansão:

Processadores Intel 10° Gen

– 1 x PCIe 3.0 x16 (modo x16)

– Intel Z490 Chipset:

– 1 x PCIe 3.0 x16 (modo x4)

– 3 x PCIe x1


Suporta 2 slots M.2 e 6 portas SATA 6Gb / s

Intel Z490 Chipset :

– 1 x M.2_1 socket 3, com M key, suporte a dispositivo de armazenamento tipo 2242/2260/2280/22110 (modo SATA & PCIE 3.0 x 4)*1

– 1 x M.2_2 socket 3, com M key, suporte a dispositivo de armazenamento tipo 2242/2260/2280 (modo SATA & PCIE 3.0 x 4)*2

– 6 x Porta(s) SATA 6Gb/s

– Suporta Raid 0, 1, 5, 10

– Intel Rapid Storage Technology supports

– Intel Optane Memory Ready


– Intel I219-V 1Gb Ethernet

– TUF LANGuard

3.11 out of 5 based on 36 customer ratings
(36 avaliações de clientes)

Sem estoque


Fora de estoque


– Realtek ALC S1200A com 7.1 Surround Sound – CODEC de alta definição

– Suporta: Jack-detection, Detecção de conexão, Multi-streaming, Painel frontal com possiblidade de redefinir a conexão

Recursos de áudio:

– Saída(s) Ótica S/PDIF no painel traseiro

– Proteção de Áudio: Garante precisão na separação analógica/digital e reduz a maioria das interferências multi-laterais.

– Áudio cover:

– Camadas de áudio PCB dedicadas: Camadas separadas para o canal direito e esquerdo para proteger a qualidade dos sinais sensíveis de áudio.

– Capacitores de áudio premium japoneses: fornecem som natural e imersivo com clareza e fidelidade excepcionais

* Devido a limitações na largura de banda HDA, 32 bits / 192kHz não é suportado para áudio de 8 canais.

Portas USB:

Portas USB Traseiras: ( Total 6 )

– 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

– 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Portas USB Frontais: ( Total 7 )

– 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)

– 1 x USB 3.2 Gen 1 port(s)(2 x Type-A)

– 2 x USB 2.0 port(s)(4 x Type-A)

Recursos de software:

– ASUS Exclusive Software

– Armoury Crate

– Aura Sync

– AI Suite 3:

– Performance And Power Saving Utility

– Turbo V Evo


– Digi+ VRM

– Fan Xpert 4

– System information

– EZ update

– AI Charger

– ASUS Turbo LAN

– DTS Custom for GAMING Headsets

– Norton Anti-virus software (Free Trial for 90 days)

– WinRAR



– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3


Recursos Especiais da ASUS:


– ASUS DIGI+ VRM (- Digital power design with Dr. MOS)

– ASUS Enhanced DRAM Overcurrent Protection

– ASUS ESD Guards

– TUF LANGuard

– ASUS Overvoltage Protection

– ASUS SafeSlot

– ASUS Stainless-Steel Back I/O

ASUS Q-Design:


– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– ASUS Q-Slot

ASUS Thermal Solution:

– Stylish heatsink


– Procool

AURA Sync:

– Standard RGB headers

– Addressable Gen 2 RGB header

Portas no painel Traseiro:

– 1 x Porta(s) PS/2 para teclado ou mouse

– 1 x DisplayPort

– 1 x Porta(s) LAN (RJ45)

– 1 x HDMI

– 5 x Conector(es) de áudio

– 4 x Porta(s) USB 3.0 (azul) Type-A

– 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)

– 1 x Optical S/PDIF out

Painel Interno:

– 2 x Porta(s) USB 2.0, com suporte a 4 porta(s) USB 2.0 adicionais

– 1 x Conector(es) de ventoinha do processador

– 6 x Conector(es) SATA 6Gb/s

– 3 x Conector(es) de ventoinha do chassi

– 2 x Header(s) Aura para fita RGB

– 1 x AIO_PUMP connector

– 1 x Conector(es) de força EATX de 24 pinos

– 1 x Conector(es) de força ATX 12V de 4 pinos

– 2 x M.2 Socket 3

– 1 x Conector(es) de áudio para o painel frontal (AAFP)

– 1 x Painel(s) do sistema (Chassis intrusion header is inbuilt)

– 1 x Conector de energia de 8 pinos ATX 12V

– 1 x Addressable Gen 2 header(s)

– 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)

– 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

– 1 x Conector(es) CPU OPT Fan

– 1 x Thunderbolt header(s)

– 1 x Jumper Clear CMOS

– 1 x COM port header


– 192 (128+64) Mb Flash ROM, UEFI AMI BIOS



Sistema Operacional:

– Windows 10 64-bit

Peso 1.781 kg
Dimensões 7 × 35 × 28.5 cm

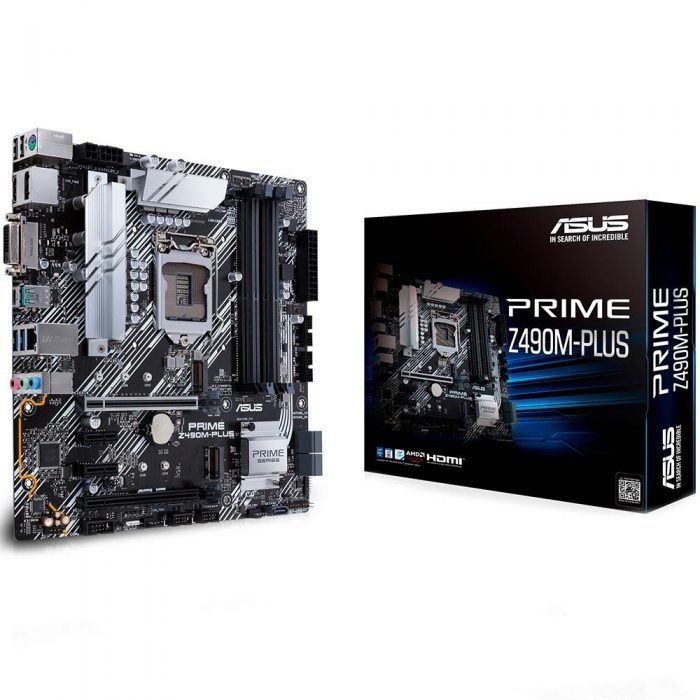

36 reviews for PLACA MAE ASUS PRIME Z490M-PLUS LGA 1200 DDR4
