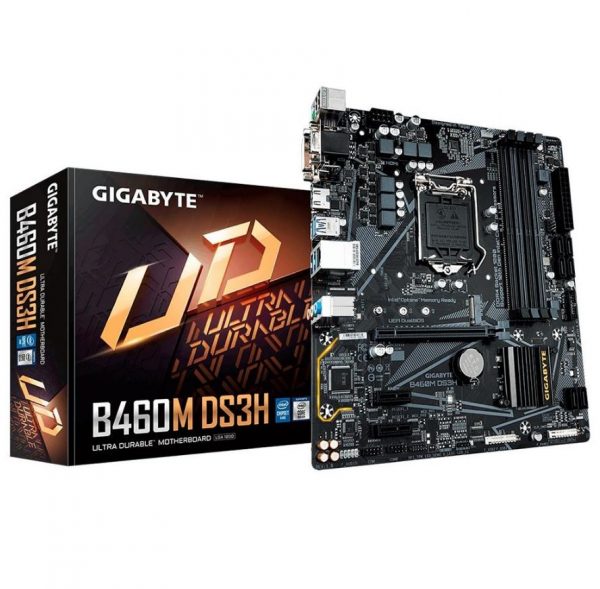

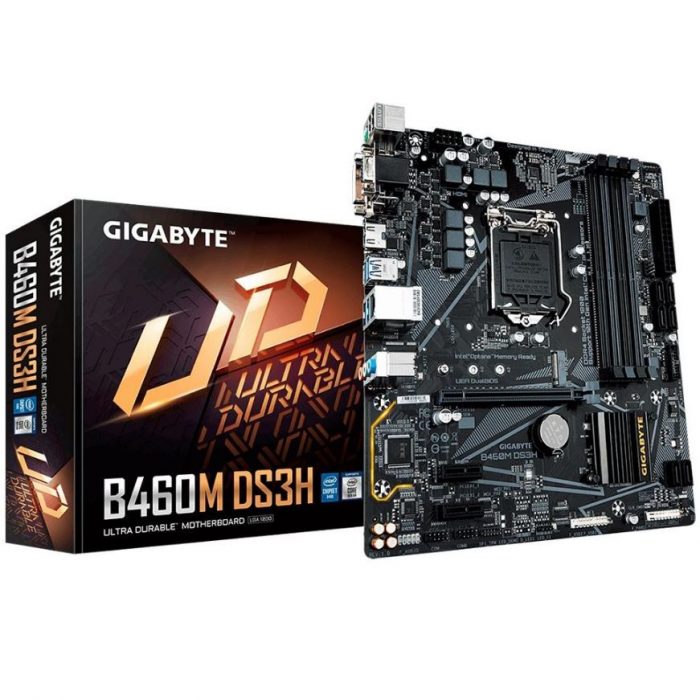

– Marca: Gigabyte

– Modelo: B460M DS3H





– Suporte para 10 de Geração Intel Núcleo i9 processadores / Intel Core i7 processadores / Intel Core i5 processadores / Intel Core i3 processadores / Intel Pentium processadores / Intel Celeron processadores no pacote LGA1200

– O cache L3 varia com a CPU

– TDP: 125W



– Intel B460 Express



– Processadores Intel Core i9 / i7: Suporte para DDR4 2933/2666/2400/2133 MHz

– Intel Núcleo i5 / i3 / Pentium / Celeron processadores: Suporte para DDR4 2666/2400/2133 MHz

– 4 soquetes DDR4 DIMM que suportam até 128 GB (capacidade DIMM única de 32 GB) de memória do sistema

– Arquitetura de memória de canal duplo

– Suporte para módulos de memória ECC sem buffer DIMM 1Rx8 / 2Rx8 (operar no modo não ECC)

– Suporte para módulos de memória DIMM 1Rx8 / 2Rx8 / 1Rx16 sem buffer ECC

– Suporte para módulos de memória Extreme Memory Profile (XMP)


Gráficos integrados:

– Processador gráfico integrado – Suporte para gráficos HD Intel:

– 1x Porta D-Sub, suportando uma resolução máxima de 1920×1200 a 60 Hz

– 1x Porta DVI-D, com resolução máxima de 1920×1200 a 60 Hz

* A porta DVI-D não suporta conexão D-Sub por adaptador.

– 1x Porta HDMI, suportando uma resolução máxima de 4096×2160 a 30 Hz

* Suporte para a versão HDMI 1.4 e HDCP 2.3.

– Suporte para até 3 monitores ao mesmo tempo

– Memória compartilhada máxima de 512 MB



– Codec Realtek ALC887

– Áudio de alta definição

– 2 / 4 / 5.1 / 7.1 canais


* Para configurar o áudio de 7.1 canais, abra o software de áudio e selecione Configurações avançadas do dispositivo> Dispositivo de reprodução para alterar primeiro a configuração padrão. Por favor, visite o site da GIGABYTE para obter detalhes sobre a configuração do software de áudio.



– Chip de LAN Intel GbE (1000 Mbit / 100 Mbit)


Slots de expansão:

– 1x slot PCI Express x16, executando x16 (PCIEX16)

– 2x slots PCI Express x1

(todos os slots PCI Express estão em conformidade com o padrão PCI Express 3.0.)


Interface de armazenamento:

– 1x Conector M.2 (soquete 3, chave M, tipo 2242/2260/2280 SATA e suporte a SSD PCIe x4 / x2)

– 6x Conectores SATA de 6 Gb/s

– Suporte para RAID 0, RAID 1, RAID 5 e RAID 10

* Consulte “1-7 Conectores internos”, para obter os avisos de instalação dos conectores M.2 e SATA.

– Pronto para memória Intel Optane





– 6x Portas USB 3.2 Gen 1 (4 portas no painel traseiro, 2 portas disponíveis através do conector USB interno)

– 2x Portas USB 2.0 / 1.1 no painel traseiro


Chipset + Hub USB 2.0:

– 4x Portas USB 2.0 / 1.1 disponíveis através dos conectores USB internos


Conectores internos:

– 1x Conector de alimentação principal ATX de 24 pinos

– 1x Conector de alimentação ATX 12V de 8 pinos

– 1x Header de ventilador da CPU

– 2x Headers de ventilador do sistema

– 2x Headers de faixa de LED RGB

– 6x Conectores SATA de 6 Gb/s

– 1x Conector M.2 Socket 3

– 1x Header no painel frontal

– 1x Conector de áudio no painel frontal

– 1x Conector USB 3.2 Gen 1

– 2x Headers USB 2.0 / 1.1

– 1x Header Trusted Platform Module (apenas para o módulo GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0)

– 2x Headers de porta serial

– 1x Jumper CMOS claro


Conectores do painel traseiro:

– 1x Porta de teclado / mouse PS / 2

– 1x Porta D-Sub

– 1x Porta DVI-D

– 1x Porta HDMI

– 4x Portas USB 3.2 Gen 1

– 2x Portas USB 2.0 / 1.1

– 1x Porta RJ-45

– 3x Tomadas de áudio


Controlador de E / S:

– Chip Controlador de E / S iTE


Monitoramento H / W:

– Detecção de tensão

– Detecção de temperatura

– Detecção de velocidade do ventilador

– Aviso de superaquecimento

– Aviso de falha do ventilador

– Controle de velocidade do ventilador *


* O suporte à função de controle de velocidade do ventilador dependerá do ventilador que você instalar.



– 2x 128 Mbit de flash

– Uso do BIOS AMI UEFI licenciado

– Suporte para DualBIOS

– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Características únicas:

– Suporte para o APP Center

* Os aplicativos disponíveis no APP Center podem variar de acordo com o modelo da placa-mãe. As funções suportadas de cada aplicativo também podem variar dependendo das especificações da placa-mãe.


– EasyTune

– Rápida inicialização

– Jogo impulso

– ON / OFF Carga

– Ambient LED

– Smart Backup

– Visualizador do Sistema de Informação

– Suporte para Q-Flash

– Suporte para instalação do Xpress


Sistema Operacional:

– Suporte para Windows 10 de 64 bits


Fator de forma:

– Tipo: Micro ATX

– Dimensões: 24.4 x 22.5 cm

2.86 out of 5 based on 35 customer ratings
(35 avaliações de clientes)

Sem estoque


Fora de estoque

Portas Painel Traseiro:

1 x PS/2 keyboard/mouse
1 x D-Sub
1 x DVI-D
1 x HDMI
4 x USB 3.2 Gen 1
2 x USB 2.0/1.1
1 x RJ-45
3 x audio jacks

Peso 1.103 kg
Dimensões 27 × 27 × 6 cm
